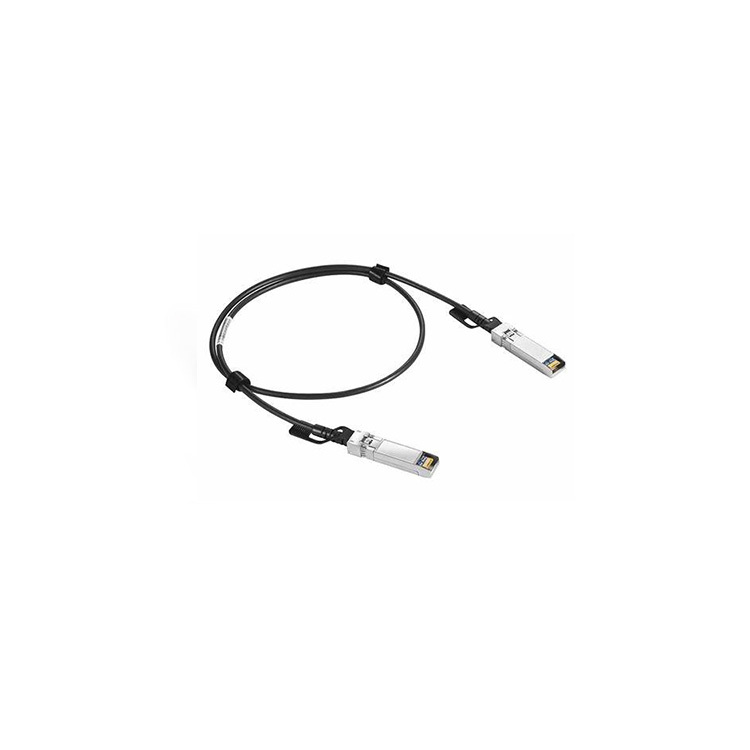

SFP28 25G AOCs

Modulelink AOC cable is suitable for a short connection between two SFP+ ports in 25G interconnecting networking applications, such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets. The 25G AOC is with lightweight that better than the 25G SFP28 copper DACs.

Product Serial Number :

Catalogue:

Description
Applications

- Commodity name: SFP28 25G AOCs
Modulelink AOC cable is suitable for a short connection between two SFP+ ports in 25G interconnecting networking applications, such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets. The 25G AOC is with lightweight that better than the 25G SFP28 copper DACs.
- Hot-pluggable SFP28 form-factor connectors
- 850nm VCSEL laser and PIN photo-detector
- Internal CDR circuits on both receiver and transmitter channels
- Compliant with SFP28 MSA and IEEE 802.3by 25GBASE-SR
- Data rate up to 25.78Gbps
- Length up to 70m (OM3) or 100m (OM4) over MMF
- Power consumption < 1W per end
- Operating case temperature range from 0°C to 70°C
- 3.3V power supply voltage
- RoHS compliant (lead free)
Key words:
- SFP28 AOC
- Optical Cable

25GBASE-SR Ethernet

32G Fibre Channel

Ordering Info

P/N:	Goods Desriptions
MSFP28-25G-AOC001	25GE SFP28 Active Optical Cable, 1m
MSFP28-25G-AOC002	25GE SFP28 Active Optical Cable, 2m
MSFP28-25G-AOC003	25GE SFP28 Active Optical Cable, 3m
......	......
MSFP28-25G-AOC010	25GE SFP28 Active Optical Cable, 10m
MSFP28-25G-AOC050	25GE SFP28 Active Optical Cable, 50m
MSFP28-25G-AOC100	25GE SFP28 Active Optical Cable, 100m

Keyword:

SFP28 AOC

Optical Cable
